ARION 5 (4 Cajas)
workpro-sound

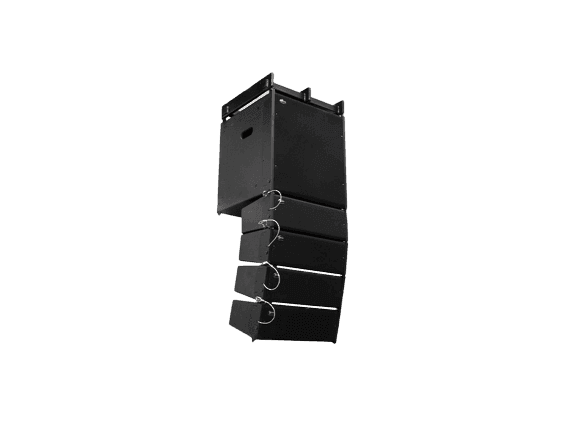

Self-powered subwoofer + 4 satellites + rigging frame. Amplifier 1000+650+150W
ARION 5 is an active three-way line array, composed of 4 SL 025 units and 1 SL 115 A unit. Each SL 025 consists of 2 5.22 loudspeakers and a 2.2 compression driver with polymer membrane attached to the VI-5 waveguide. The SL 115 SA subwoofer cabinet uses a 15 driver, with a 3.5 voice coil. It has digital signal processing, and the power is provided by a Class D amplifier of 800W peak in bass, 650W peak in midrange and 150W peak in treble, which incorporate thermal and overload protections. Independent RMS and peak limiters are used on each path.
Caracteristicas:
- Case-D amp.
- Birch plywood.
- Flying frame included.
Datos técnicos
| Model | ARION 5 (4 Cajas) |
|---|---|
| LF Transducer | Woofer 15'', Voicecoil 3.5'' |
| MF transducer | 2 x woofer 5'', Voicecoil 1.46'' |
| HF Transducer | Driver compression 2.2'', exit 1.75' |
| LF amplifier | Clase-D 800 W peak |
| MF amplifier | Clase-D 650 W peak |
| HF amplifier | Clase-D, 150 W peak |
| FInput Impedance | 10 KOhm |
| Input Sensitvity | +4 dBu |
| Max SPL | 122 dB |
| Horizontal coverage | 140º |
| Material | Birch plywood |
| Finished | Polyurethane paint |
| Power supply | 115Vac/230Vac, 50Hz/60Hz |
| Consumption | 2 A |
| Weight | Satellite: 9.2 Kg, Subwoofer: 33.5 Kg |
| Dimensions | Satellite: 165x490x251 mm, Subwoofer: 521x490x492 mm |
