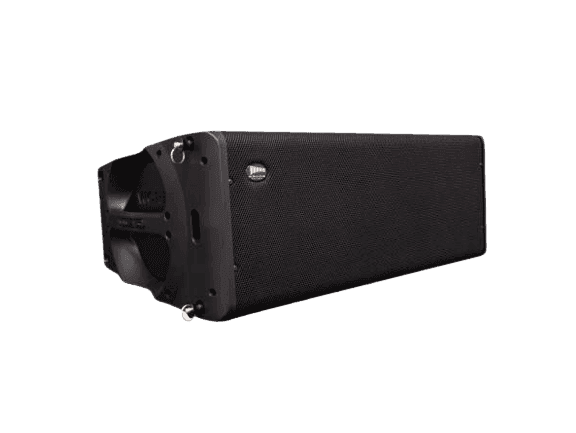

ARION SL 210 A
workpro-sound
The Arion Series increases the family with the new biamplified SL 210 A line array system, featuring two class D, 1000W power amplifiers.
The SL210A can suit the requirements of different configurations thanks to it powerful built-in DSP. Each unit can be set manually thanks to its interface and controls placed at the rear part of the enclosure, which allows for the user to navigate through the menu and the different parameters of the system.
The SL 210 A features high performance and sensitivity transducers: two 10'' speakers, one of them passively filtered in order to control the directivity in the Mid-Low range, along with a compression driver featuring a polymer PM-4 membrane coupled to a 120º Horizontal coverage horn.
Caracteristicas:
- Self-powered two-way system.
- Remote monitoring via Ethernet.
- Compression driver with PM4 polymer membrane.
- 120° horizontal uniform coverage.
- Factory presets by number of units.
- Delay and up to 8 configurable parametric EQs.
- 1000W peak amplifier for Lows and 500W peak amplifier for Highs.
- Color: Black.
- Independent RMS and peak limiters per way.
- 27 kg of weight.
Datos técnicos
| Model | ARION SL 210 A |
|---|---|
| Frequency Range | 100Hz - 18kHz (-10dB) |
| Max Peak SPL | 135 dB |
| Horizontal Coverage | 120° |
| Transducers | LF, 2 x 10'', 1.46'' voicecoil - HF, 1.4'' exit, 1.75'' voicecoil - PM-4 Membrane |
| Input Connector | Female XLR |
| Output Connector | Male XLR |
| Input Sensitivity | 4dBu |
| Protections | Thermal and Overload. |
| LF Power | 1000Wpeak |
| HF Power | 500Wpeak |
| Type | Class D |
| Cooling | BlacPassive Dissipationk |
| Power Connector | PowerCON |
| Power Consumption (1/3 Power @ 230v) | 2A |
| Universal Power Supply | 85Vac to 265Vac, 45Hz to 65Hz |
| Shut-down Voltage | 85Vac |
| Shut-down Temperature | 85ºC / 185ºF |
| DSP Control | Ethernet |
| Dimensions | 283 x 769 x 475 mm |
| Weight | 27 Kg |
| Enclosure Material | Birch plywood |
| Colour | Black |
