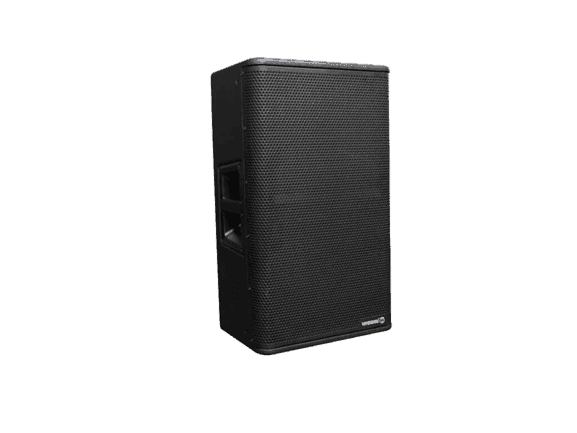

ENTAR 12A
workpro-sound
12'' self-powered loudspeaker
ENTAR 12A is a two-way self-powered loudspeaker that incorporates a 1000W amplifier, made of wood. It consists of a 12'' loudspeaker with a 2.5'' voice coil and a 1.35''compression driver, and incorporates a signal processing DSP. Thanks to this DSP, it is possible to select 4 equalization presets, 3 HPF filters with selectable frequency, tone control (treble and bass) and differentiated preset for use as a floor monitor or placed on a support. It has an insertion vessel for a 35 mm support that allows 0º/10º angulations and rigging fixation points. Incorporates 2 Mic/Line inputs with level control and mix function.
Datos técnicos
| Model | ENTAR 12A |
|---|---|
| Type | 2-Way. Class D amplifier |
| Power | Amplifier 1000 W |
| LF Transducer | 12'' Woofer; 2.5'' Voice Coil |
| HF Transducer | 1.35'' compression driver |
| DSP | 4 Presets, 3 HPF Filters, Bass / Treble Curve Adjustment |
| SPL Max | 128 dB |
| Coverage Angle (H x V) | 86º x 54.6º |
| Frequency Range | 50 Hz - 20 KHz |
| Connections | 1 x Combi XLR3/Jack TRS 1/4'' female, 1 x XLR3 female, 1 x XLR3 male |
| Enclosure material | Plywood and metal grill |
| Inserts / Rigging | Insertion: 35 mm - 0°/10° angulation; Rigging: sections for rigging rail and fixing points |
| Power supply | AC 100 - 240 V / 50 - 60 Hz |
| Colour | Black |
| Dimensions | 630 x 360 x 354 mm |
| Weight | 20.1 Kg |
