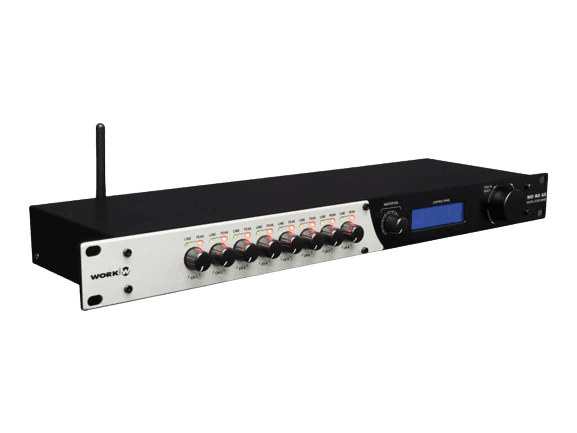

MD 82 AX MK II
workpro-sound
8-channel digital audio mixer.
MD 82 AX MK II is a mixer for microphones which integrates a large series of attractive features that allow to optimize the installation and to outfit with multiple audio signal control and management possibilities. This mixer incorporates 8 balanced inputs. It provides individual input level control and master level.
The encoder in the frontal side allows to navigate through a configuration menu with the different parameters on each channel. Among the functions to be performed, we can set three tone control, low-pass and high-pass filters (with frequency adjustment) and 4 anti-feedback levels. All this information is showed in the LCD display.
Datos técnicos
| Model | MD 82 AX MK II |
|---|---|
| Type | 8 microphone channels mixer |
| Input sensitivity | 5 mV (1kHz output 1V) |
| Maximum input level | 105 mV (1kHz THD -1%) |
| Maximum output level | > 4V (Balanced) |
| Frequency response | 20 Hz - 20kHz |
| Phantom power supply | +48V selectable |
| Functionalities | Input gain, low pass filter, high pass filter, antifeedback (per channel), master level, encoder, LCD displa |
| Automixer function | TARGET and GAIN parameters configurables |
| Main supply | AC 115/230 V - 50/60 Hz |
| Dimensions | (WxHxD): 483 x 44 x 150 mm |
| Weight | 1.9 kg |
