PA 4500 L
workpro-sound
tags: "Amplifier 4 x 500 W @ L70 / 100V",

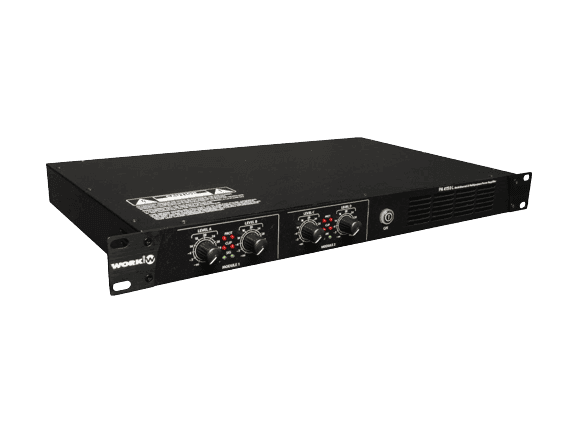

PA 4500 L amplifier offers 4 class D channels with 500 W per output. It can work both in 70V and 100V line (selectable through dip-switches). Each channel has its own volume control and LED indicators (signal, clip, and protect). PA 4500 L integrates various protections such as short circuit, thermal, ultrasonic and RF. Its inputs and outputs are connected by Euroblock connectors and it has dimensions of 1 HU rack 19''.
Caracteristicas:
- Switch mode power supply.
- 70 / 100V operation (selectable).
- 1 HU rack 19 inch.
- Volume control on each channel.
Datos técnicos
| Model | PA 4500 L |
|---|---|
| Type | 70/100 V line |
| Power | 4 x 500 W |
| Input Sensitvity | 1V (±0.1V) |
| Input Impedance | 20 KOhm (balanced) 10 KOhm (unbalanced) |
| Connectors | INPUT and OUTPUT: Euroblock |
| Frequency Response | 100 Hz - 15 KHz |
| Gain | 40 dB |
| THD+N | < 0.1% |
| S/N ratio | > 95 dB |
| Damping Factor | > 200 |
| Crosstalk | > 70 dB |
| Protections | Short circuit, open circuit, overtemperature, ultrasonic and RF |
| Power supply | AC 110-240V, 50/60 Hz |
| Consumption | 2000 W |
| Dimensions | 483 x 44 x 460 mm |
| Weight | 5.1 Kg |
